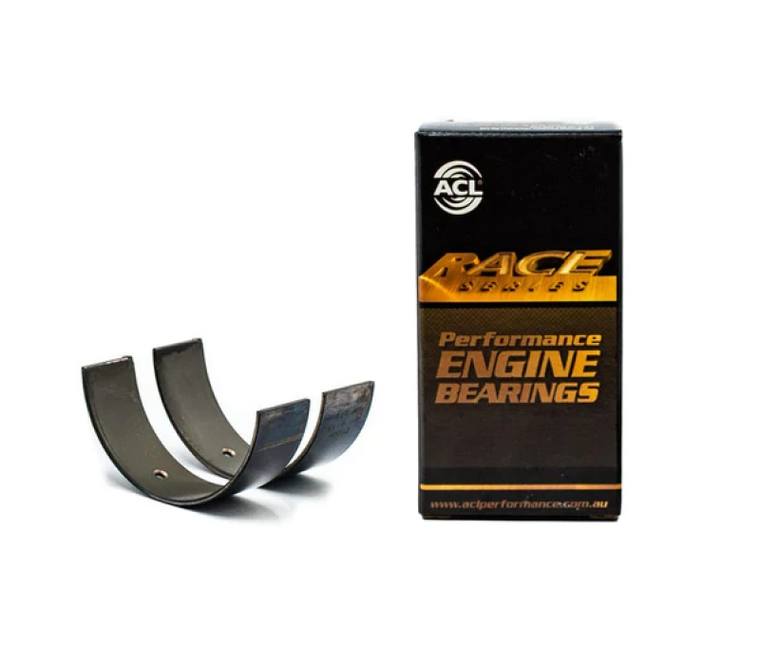

ACL Race Series Extra Clearance High Performance Rod Bearings for the GR Corolla 2023+ (G16E-GTS)
ACL
$85.99
(No reviews yet)
Write a Review
ACL
ACL Race Series Extra Clearance High Performance Rod Bearings for the GR Corolla 2023+ (G16E-GTS)
ACL Performance Race Series Rod Bearing Sets
- ACL Performance offers Race Series rod bearing sets for a wide range of vehicles. These high performance tri-metal engine bearings are designed to withstand higher RPM conditions. They feature a high-strength overlay plate with reduced thickness for improved fatigue properties. Select the crankshaft undersize and quantity recommended for your year/make and engine application.
Additional details: - Hardened steel backs on all rod bearings to improve the support of the bearing lining and assist with bearing retention in the housing.
- Increased crush for improved bearing retention
- Elimination of flash plating on the back of the bearings to improve heat transfer through the bearings and to maximize the grip between the bearings and its housing
- Increased eccentricity to compensate for bore distortion at high RPM and to assist in the formation of hydrodynamic oil films
- 3/4 in. grooved main bearings to optimize bearing load carrying surface area and oil flow to the conrod bearings
- Tight consistent wall tolerances to help you maintain consistent clearances
- Enlarged ID chamfers on bearing edges (where required) to accommodate large fillet radius on performance crankshafts
Engine Crankshaft Undersize (in.):
Stock
Engine Crankshaft Undersize (mm):
Stock
Bearing Material:
Tri-metal copper-lead alloy
Dowel Pin Hole:
Yes
Narrow Bearing:
No
Quantity:
Sold as a set of 3.
Notes:
0.001 in. extra thinner for extra clearance.
